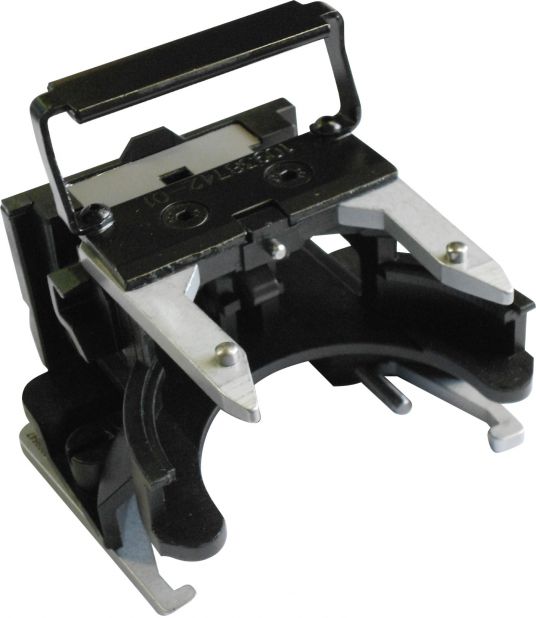

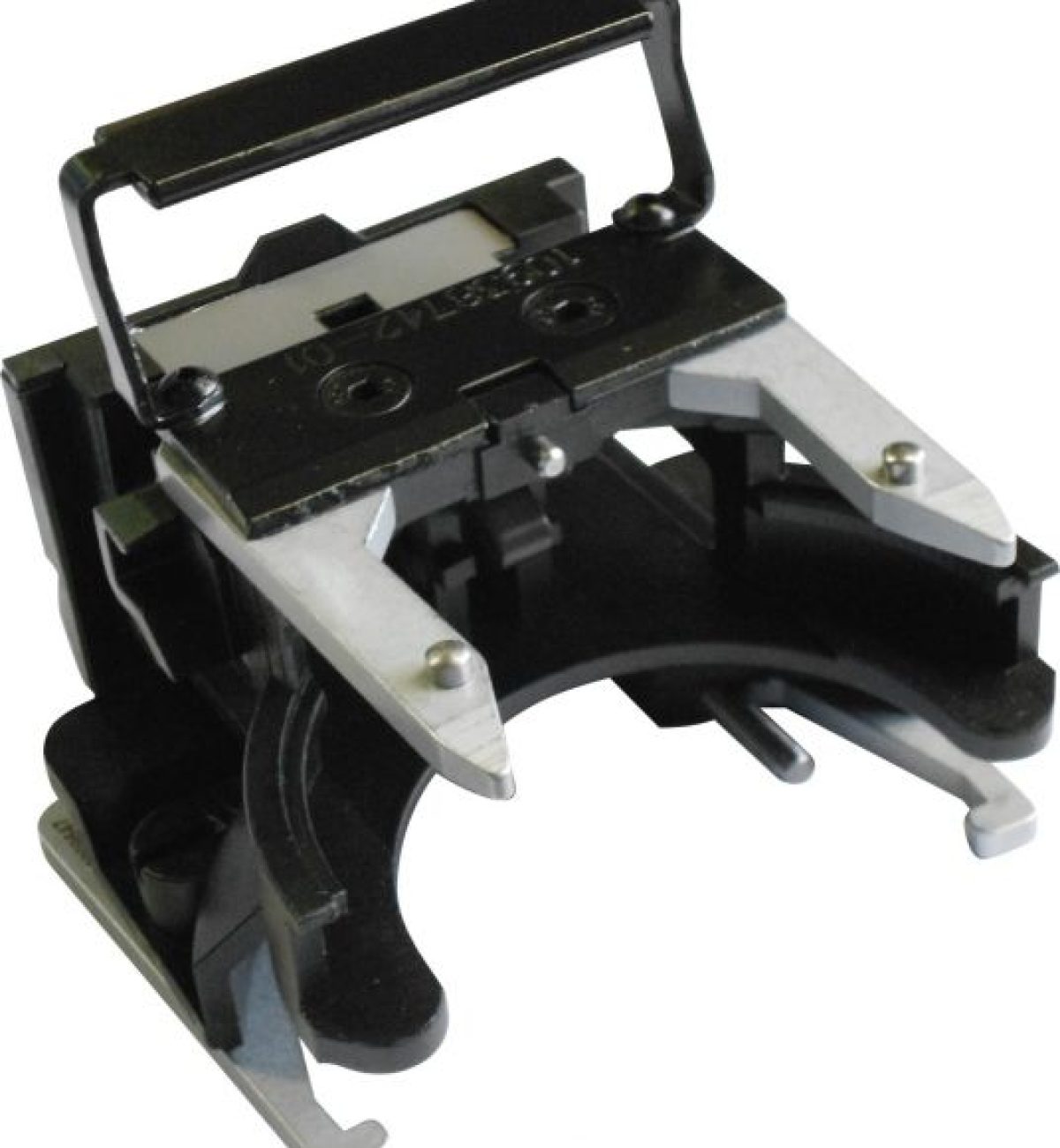

Trumpf Cartridge
The Trumpf cartridge is one of the components used in metalworking systems for purposes of holding, guiding, or supporting tools when carrying out a production process. This component serves to provide stability and accuracy during processes of punching or press brakes. In most cases, cartridges are employed in industrial settings to ensure proper positioning of the tools, reduce their wear and tear, and facilitate easy tool changes.
This component plays a significant role in operations requiring high levels of precision and repeatability, since even slightest alignment issues may impact the results of bending and punching. That is why the Trumpf cartridge needs to be made very precisely.
About GVK Metalforms
GVK Metalforms Pvt Ltd was established on 7th May 2008, and it is one of the top-notch suppliers of sheet metal tooling solutions, having offices in Jalandhar and Pune. Our company is specialized in producing the best quality press brake tools, Trumpf cartridges, punches, dies, back gauges, and many more tooling components.
Using our expertise and technology from all over the world, we provide reliable solutions, which help sheet metal manufacturers increase their productivity, save time, and get excellent results of their work. With a professional team of sales and applications specialists, we can offer each customer the best tooling solutions possible.
Our Partners
Features of a High-Performance Trumpf Cartridge
A reliable Trumpf cartridge will be expected to have the following features that contribute towards its efficiency in the industrial sector:
Precision Engineering
The cartridge should be built with precision to ensure it fits perfectly into the tooling system.
Strong Material Construction
Considering the cartridge is used in an industrial setting, it should be constructed using materials that can withstand pressure and frequent handling.
Smooth Tool Compatibility
For a good cartridge, it should have the capacity to work effectively with the specific Trumpf tooling system.
Resistance to Wear
In the course of usage, wear can occur due to constant movement of the tooling parts. A high-quality cartridge will be resistant to wear.
Stable Operation
The cartridge should facilitate smooth operation when performing punching or bending.
“Reliable Trumpf Cartridges for Flawless Punching Performance.”
OUR PRODUCTS Gallery
Benefits of Using a Trumpf Cartridge
GVK Metalforms is dedicated to the provision of high-quality tooling components which are able to satisfy the actual demands of fabrication specialists. The Trumpf cartridge offered by us can ensure you the following advantages:
Better Accuracy
If your tools are held appropriately, then the precision of machine’s work will be improved. This will lead to higher quality of products and to the reduction of mistakes made in the process of their shaping or punching.
Improved Productivity
The use of a dependable cartridge helps in performing operations efficiently and in fastening the work with tools.
Reduced Downtime
If all the tooling components function regularly and do not cause any problems related to the fitment, alignment, or adjustment, then it will prevent downtime.
Longer Tool Life
Stable tooling components are able to lessen the wear-out of those tooling components connected to them. This will ensure longer lifespan of the whole system.
Cost Efficiency
By supporting dependable machine performance and reducing maintenance requirements, a quality cartridge can help lower operating costs over time.
Gallery Video
Adjustable Range-What is suitable for your bend profile?
Bending Checker plate without marks
Channel Bending in Single Stroke on Rolla-v
Applications of Trumpf Cartridge
Trumpf cartridges find use in a number of sheet metal processing industries that require accuracy and efficiency. These are normally utilized in workspaces that engage in:
1) Metal punching operations
2) Press brake tooling systems
3) Sheet metal bending applications
4) Industrial fabrication lines
5) Custom component manufacturing
6) High-volume production environments
In these uses, the cartridge ensures proper tooling support and aids in providing consistent production. For companies involved in multiple batches of manufacturing, such consistency is necessary to meet customer requirements.
Partner with GVK Metalforms for Premium Trumpf Cartridge Solutions
Be it the need for cartridge replacements or full-fledged sheet metal tooling solutions, GVK Metalforms can be relied upon for its expertise in manufacturing. The Trumpf Cartridges offered by us have been manufactured to ensure higher efficiency in punching, increased productivity levels and lower costs of operations in multiple fabrication applications.
Through our highly developed manufacturing processes, strict quality control and customer support, GVK Metalforms offers reliable tooling solutions which assist companies in maintaining high standards of production. Contact us now for the right kind of Trumpf Cartridge products for your CNC turret punching machine.
OTHER PRODUCTS
FAQ's
A Trumpf Cartridge is a type of component that is used as a tool holder in CNC turret punch press machines. It is used to position the punching tools.
A well-designed Trumpf Cartridge allows more precise punching operations, prolongs tool life and decreases the tool wear.
The Trumpf Cartridges provided by GVK Metalforms are made from high-quality hardened alloy steel.
They give more accurate tool alignment and decrease the number of breaks that occur during production.
The company provides you with high quality and competitive prices along with professional technical advice.
